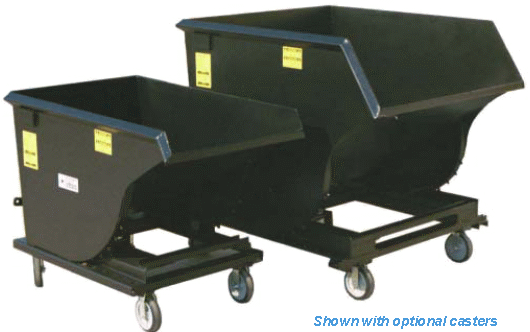

STAR HOPPERS
AVAILABLE IN FIVE
POPULAR SIZES:
½ cubic yard Narrow
1 cubic yard
1½ cubic yard
2 cubic yard
2½ cubic yard
other sizes available
AVAILABLE IN FIVE
POPULAR SIZES:
½ cubic yard Narrow
1 cubic yard
1½ cubic yard
2 cubic yard
2½ cubic yard
other sizes available
Heavy Duty - “Construction Grade”
Star Heavy Duty Self-Dumping Hoppers are constructed of 1/4" and 3/16" steel plate to withstand the use and abuse of a fast moving construction job. These are not the thin sheet metal hoppers you find in many industrial plants but rugged long lasting hoppers designed for the construction industry. Ideal for removing broken-up concrete, plaster, brick and other construction refuse.
Star Heavy Duty Self-Dumping Hoppers are constructed of 1/4" and 3/16" steel plate to withstand the use and abuse of a fast moving construction job. These are not the thin sheet metal hoppers you find in many industrial plants but rugged long lasting hoppers designed for the construction industry. Ideal for removing broken-up concrete, plaster, brick and other construction refuse.
Safety First ... these features are
standard on all Star Self-Dumping Hoppers.
Hopper
Safety Lock
- a separate lock prevents the hopper from
inadvertently dumping when traveling over rough terrain.
Rope
Release

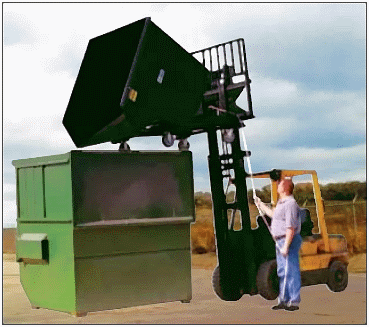

- permits releasing the latch
from the ground
or from the operator’s seat. Forklift
operator can discharge the
hopper safely even when it is elevated.
Safety
Chain and Grab Hook
-
secures the hopper to the forklift. Ensures
the hopper
will not slide off the forks when traveling or dumping.
.gif)
Universal Fit - Can be used with both straight-mast and extendable-reach forklifts. Pocket Base accommodates forks up to 10" wide and 2½" thick.
Safety Chain &
Storage Hook
Storage Hook
Safety Lock
Release Handle
Rope Release
secures hopper to forklift and prevents hopper from
accidentally sliding off forks. The
hook keeps the chain out of
the way when not in use.
prevents accidental discharge
when transporting a load.
Must be disengaged before
hopper will dump.
when transporting a load.
Must be disengaged before
hopper will dump.
can be used to trip the hopper
from the ground or from the
operators seat.
from the ground or from the
operators seat.
at the back of hopper can be
used to dump the load or...
used to dump the load or...
.gif)
Heavy-Duty Casters
Model 1000-0510
Model 1000-0510
Lifting Hooks
Model 1800-LH
Model 1800-LH
Star Self-Dumping
Hoppers are available with Heavy-Duty
Steel Casters and 8" diameter Polyurethane Wheels with
Roller Bearings. The combination of the larger wheel size, roller bearings, and the polyurethane tire material
makes it easier to push the hopper over
trash and foreign objects. Rear wheels
swivel for easy maneuverability.
Casters are bolted to hopper (not
welded) so they can be easily
replaced if damaged.
Steel Casters and 8" diameter Polyurethane Wheels with
Roller Bearings. The combination of the larger wheel size, roller bearings, and the polyurethane tire material
makes it easier to push the hopper over
trash and foreign objects. Rear wheels
swivel for easy maneuverability.
Casters are bolted to hopper (not
welded) so they can be easily
replaced if damaged.
Optional Lifting Hooks (eyes) are
available for handling hoppers
with a crane. A hook is welded to each
corner of the hopper.
Shackles should be used to attach slings
to hooks. Heavy duty
hooks are designed to handle the weight
of
the empty hopper plus it’s
full rated load capacity.
full rated load capacity.
Please Note: Hopper can not
be discharged while
suspended with a crane.
| MODEL | CAPACITY | WEIGHT CAPACITY* (w/o casters) |
BASE DIMENSIONS |
TOP DIMENSIONS |
OVERALL HEIGHT (w/o casters) |
WEIGHT (w/o casters) |
| 1805N | ½ yd3 | 4,000 lbs. | 42" x 32" | 49" x 32" | 36" | 440 lbs. |
| 1810 | 1 yd3 | 6,000 lbs. | 48" x 39" | 62" x 39" | 39" | 605 lbs. |
| 1815 | 1½ yd3 | 6,000 lbs. | 55" x 43" | 67" x 45" | 46" | 775 lbs. |
| 1820 | 2 yd3 | 6,000 lbs. | 57" x 58" | 66" x 57" | 48" | 925 lbs. |
| 1825 | 2½ yd3 | 6,000 lbs. | 57" x 58" | 67" x 57" | 55" | 1025 lbs. |
HOPPER ARE PRIMED AND THEN COATED WITH BLACK ENAMEL
