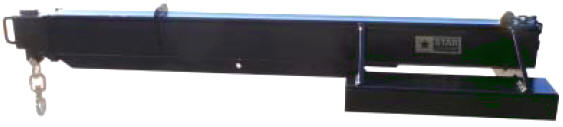

HEAVY DUTY FORKLIFT JIB

Extend the reach of your forklift
Jib

REACH:
  • bullit  FARTHER

  • bullit  HIGHER

  • bullit  OVER OBSTRUCTIONS
Model 1360B
TELESCOPES TO 12 FT.

Heavy Duty Jib
Expand the Capabilities of your Forkliftsetting trusses

  •  Reach over or under obstructions to place heavy loads.
  •  Set equipment on the roof or elevated decks.
  •  Reach through narrow openings such as windows to
     set or pick up a load.
  •  Load and unload trucks easier and more safely.
  •  Reach into motor freight vans to load or unload
     materials and equipment.
  •  Load, move, and handle equipment in your
     equipment yard.
  •  Reach over scaffold to set stone or other heavy
     masonry units.
  •  Hang trusses and laminated wood beams.
Heavy Duty Jib
Specifications
  • Designed for use on both straight-mast and extendable-reach type forklifts.
  • Telescoping two section tubular steel boom.
  • Manually telescopes from 7' 0" to 12' 0" - Pull spring-loaded pin to telescope - release pin and boom locks in desired position.
  • Internal stop ensures telescoping section can not be accidently pulled all the way out.
  • Jib slides on the forks and is pinned behind the heel to secure it to the forklift.
  • Universal fit (slip-on-the-forks) design permits use on most all forklifts.
  • One swivel hooks are included.




MODEL 1360B
Max. Load Cap.  6000 lbs.
Empty Weight 585 lbs.
Extends  7' 0" to 12' 0"
Vert. Center of Gravity Centerline
Horiz. Center of Gravity:
Fully Retracted 36 5/16"
Extended Midway 43 ¾"
Fully Extended    54 7/16"
Heavy Duty Jib Drawings and Specs



CAUTION: BE AWARE THAT FORKLIFT RATED CAPACITIES DIMINISH RAPIDLY WHEN THE LOAD CENTER IS MOVED OUT. WHEN USING THE JIB, MAKE SURE YOUR FORKLIFT HAS ADEQUATE CAPACITY TO HANDLE THE DESIRED EXTENDED LOAD. SEE BOTH THE HEAVY DUTY JIB AND YOUR FORKLIFT OPERATOR’S MANUALS FOR MORE INFORMATION. LOAD CAPACITIES SHOWN HERE ARE FOR THE JIB ITSELF AND DO NOT IN ANY WAY REFLECT THE LIFT CAPACITY OF THE FORKLIFT.
➨
HOOK POSITION 4 3 2 1
DISTANCE  12' 0"  9' 0" 7' 0" 4' 0"
Maximum Load Capacity on a Single Hook 2,000 lbs. 3,000 lbs. 4,000 lbs. 6,000 lbs.

Fork Pocket Size: 30" long x 7½" x 3½" ID / Center to Center of Fork Pockets: 24" / Pocket Ends are open.
Download   Operating manual for Models 1340 and 1360 older models
Download   Operating manual for Model 1360B current model
