Ideal for . . .
- General jobsite trash
handling. - Drop from masonry saw
brick & block cutting. - Rehab Projects.
- Re-roofing Jobs.
- Even as an elevating
platform for material
and equipment.
-

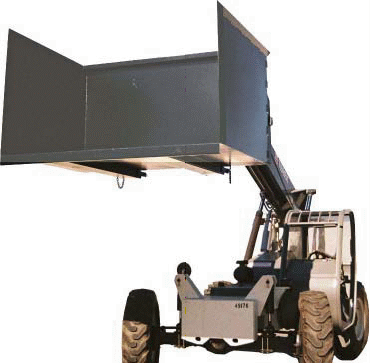

① Forklift places hoppers where they are needed - on the floor, elevated deck, or roof. - ② Workmen load them up as work progress's.
- ③ When the hopper is full, the forklift picks it up and carries it to the disposal area to dump - simple and convenient!
Easy-To-Load Design
Front completely open for unrestricted access.
Material can be . . .
• Wheeled in with wheelbarrows.
• Dumped from power buggies.
• Loaded by compact loaders.
• Thrown in by hand.
Front completely open for unrestricted access.
Material can be . . .
• Wheeled in with wheelbarrows.
• Dumped from power buggies.
• Loaded by compact loaders.
• Thrown in by hand.
Rugged
All Steel Construction
• Durable 3/16" plate steel for shell and sides.
• Full length fork channels add strength to bottom and assure the correct forklift pick-up points.
• Edges and corners are heavily reinforced for
greater strength and rigidity.
• Durable 3/16" plate steel for shell and sides.
• Full length fork channels add strength to bottom and assure the correct forklift pick-up points.
• Edges and corners are heavily reinforced for
greater strength and rigidity.
Uniiversal
Fit
• Fits most all forklifts - slip on forks design
• Fork Pockets accept forks up to: 2 ¾" thick x 7
wide x 60" long
• Attaches fast and easy to forklift with simple pin
locking system.
• Fits most all forklifts - slip on forks design
• Fork Pockets accept forks up to: 2 ¾" thick x 7
wide x 60" long
• Attaches fast and easy to forklift with simple pin
locking system.
Cleaner and Safer
• Eliminates dust and airborne material
associated with chutes and slides.
• Eliminates dangers associated with trash
being dumped directly from elevated decks.
• Eliminates dust and airborne material
associated with chutes and slides.
• Eliminates dangers associated with trash
being dumped directly from elevated decks.
| Model | Size | Volume | Maximum Load Cap. | Empty Weight |
| 1420 | 5' w x 3' h x 5' d | 2.7 yd3 | 5,000 lbs. | 790 lbs. |
| 1425 | 5' w x 4' h x 5' d | 3.7 yd3 | 5,000 lbs. | 880 lbs. |
| 1430 | 7' w x 4' h x 5' d | 5.0 yd3 | 5,000 lbs. | 1025 lbs. |
Fork Pocket Size: 60" long x 7¾" x 3" ID / Center to
Center of Fork Pockets: 38" / Pocket Ends are closed.
