Gain the Advantages of
Star “QT” Truss Booms

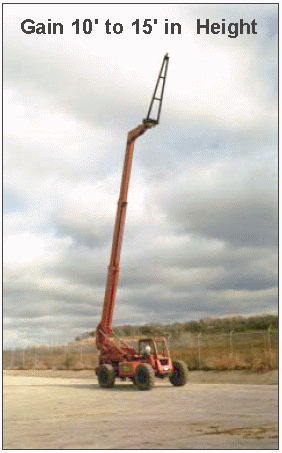

Your forklift and a Star QT Truss Boom can replace a
crane on many “low rise” jobs. It is ideal for metal
building erection, setting wooden trusses, putting up
post frame buildings and many more crane type jobs.

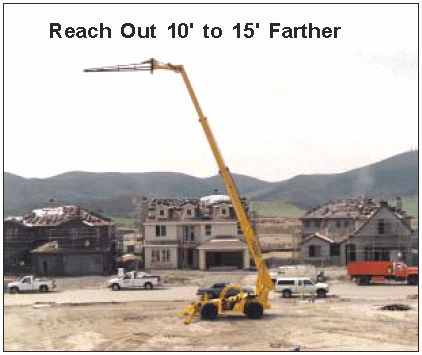

Take advantage of the speed and maneuverability of RT
Extendable Reach Forklifts to increase production on
low rise crane type jobs. A Star “QT” Truss Boom and
your forklift, even on rough and muddy jobsites, will get
the job done faster and at less cost.
Damage . . .
On or off the forklift, the fully welded, square tube
construction of Star QT Truss Booms ensure strength
and durability. It’s a truss boom that is built to last!

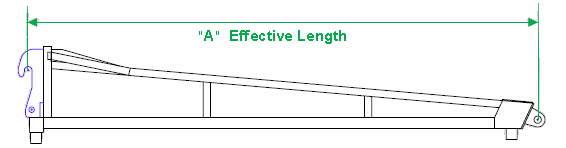

Model 1320 Low Profile 12
ft. Truss Boom (model 1310 & 1325 are similar)
Model 1302 - 2 ft. Truss Boom

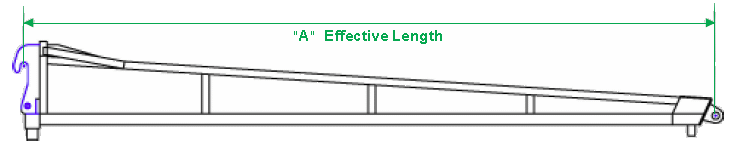

Low Profile 15 ft. Truss Boom
(model 1335 is similar)
Rear View
Rear View
| Style | Model | "A" Effective Length |
"B" Back Height |
"C" Back Width |
Load Capacity |
Empty Weight |
Overall Length |
| Low Profile1 Truss Boom |
1302 | 2' - 0" | 26.5" | 31" | 10,000 lbs. | ±335 lbs. | 2' - 5" |
| 1310 | 10' - 0" | 26.5" | 31" | 2,000 lbs. | ±480 lbs. | 10' - 5" | |
| 1320 | 11' - 8" | 26.5" | 31" | 2,000 lbs. | ±560 lbs. | 12' - 0" | |
| 1330 | 15' - 0" | 26.5" | 31" | 2,000 lbs | ±640 lbs. | 15' - 5" | |
|
Wide Back2 Truss Boom |
1325 | 11' - 11" | 36" | 45" | 2,000 lbs. | ±690 lbs. | 12' - 4" |
| 1335 | 14' - 11" | 36" | 45" | 2,000 lbs. | ±795 lbs. | 15' - 4" | |
| 1
The standard "Low Profile" Truss Boom is used with most forklift
models except those that utilize an extra wide quick-tach design. |
|||||||
| 2
JCB Q-Fit, Gehl Dynacarrier, Bobcat VersaHandler and Ingersoll-Rand
models VR518,VR623, VR638 quick-tach designs require the "Wide Back". |
|||||||
Note: Forklift make, model, quick-tach style and serial number may be required when ordering.
CAUTION: Above load ratings are for
the truss boom only
and do not reflect actual forklift load capabilities.
and do not reflect actual forklift load capabilities.
