The Self-Dump Bucket is perfect for anyone who wants to load loose materials and owns a forklift but doesn’t own a loader. Installation is quick and easy. The bucket simply slips on the forks –

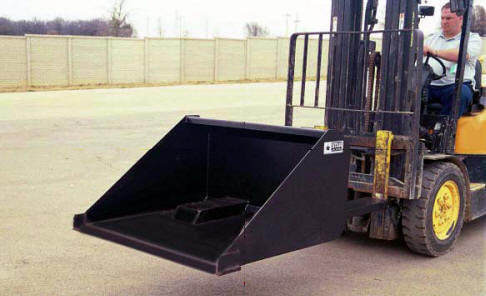

The Model 1445SD shown above,
Slips on the forks - Installs in minutes - no forklift
modification required.
"Optional HYDRAULIC MODELS"
SELF-DUMP BUCKETS
It is convenient and it provides
precise control of the discharge. Hydraulic flow from the
forklift is required and hydraulic control valve is not
included. Frequently if the forklift is equipped with a
hydraulic fork positioner, flow from that valve can be diverted
to the bucket cylinder.

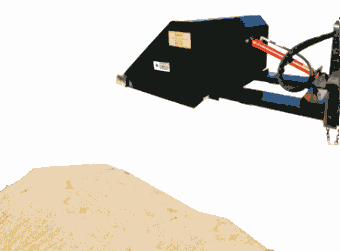

The hydraulic cylinder provides a smooth controlled dump action. Easy installation on forklifts with side shift. - Simply install quick-disconnects in the hydraulic lines going to side shift cylinder. When bucket is used, hydraulic lines to side shift are disconnected and dump cylinder lines connected. Bucket dump is then controlled with side shift valve. If not equipped with side shift, auxiliary hydraulics and valve are required.
The hydraulic cylinder provides a smooth controlled dump action. Easy installation on forklifts with side shift. - Simply install quick-disconnects in the hydraulic lines going to side shift cylinder. When bucket is used, hydraulic lines to side shift are disconnected and dump cylinder lines connected. Bucket dump is then controlled with side shift valve. If not equipped with side shift, auxiliary hydraulics and valve are required.

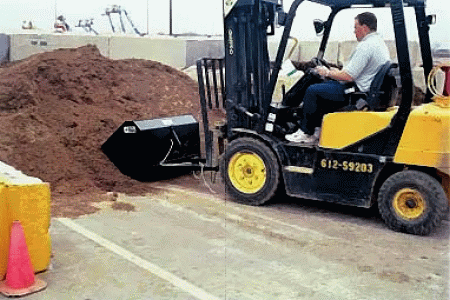

Load sand, gravel, mulch or
most any loose material.
most any loose material.
.gif)

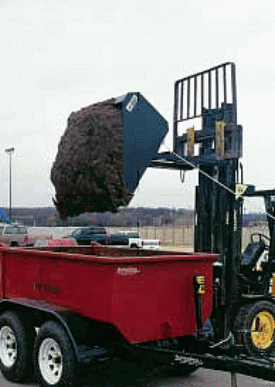

Rope Release
trips bucket.
trips bucket.
.gif)
.gif)

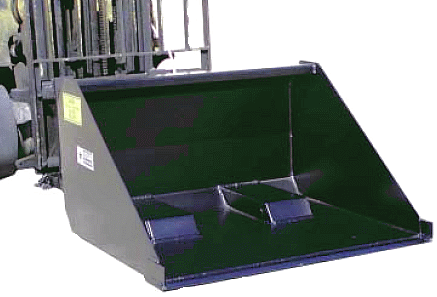

The Self-Dump Bucket
is perfect for anyone who wants to
load loose materials and owns a forklift but doesn’t own a
loader. Installation is quick and easy. The bucket simply slips
on the forks – no hydraulics - no modifications to the forklift.
load loose materials and owns a forklift but doesn’t own a
loader. Installation is quick and easy. The bucket simply slips
on the forks – no hydraulics - no modifications to the forklift.
| DANGER -
DO NOT USE WITHOUT INSTALLING RETAINING PINS BEHIND THE HEEL OF EACH FORK AND SECURING WITH HAIR PINS OR COTTER PINS. SAFETY CHAIN(S) MUST ALSO BE USED. WRAP CHAIN AROUND A STRONG PART OF THE FORK CARRIAGE AND SECURE WITH LOCKING GRAB HOOK. |
The ¼, ½, ¾, 1 yd3. capacitiesis are ideal size for the masonry supply, landscape supply or anyone that wants to load small quantities of sand, top soil, mulch, landscape materials, etc. It is also great for clean-up work around an equipment or supply yard.

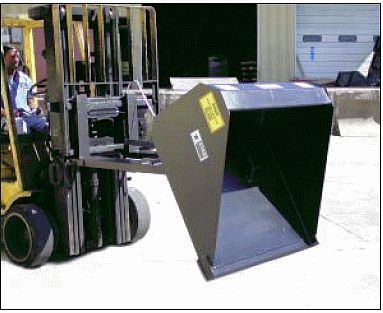

Operation is simple, after disengaging the
safety lock the bucket can be tripped with the handle at the back of
the bucket or from the operator’s seat with the remote rope release.
Lowering the bucket to the ground resets the bucket for the next
load.
Heavy duty construction and a dependable trip mechanism ensures long trouble-free life. An affordable low cost makes this bucket easy to justify even for the occasional user.
.gif)
Heavy duty construction and a dependable trip mechanism ensures long trouble-free life. An affordable low cost makes this bucket easy to justify even for the occasional user.
| Manual Dump Buckets | |||
| MODEL | CAPACITY | WIDTH | WEIGHT |
| 1440SD | ¼ yd3 | 45" ID | 420 lbs. |
| 1445SD | ½ yd3 | 45" ID | 525 lbs. |
| 1472SD | ¾ yd3 | 72" ID | 775 lbs. |
| 1484DS | 1 yd3 | 84" ID | 790 lbs. |
| Hydraulic Dump Buckets | |||
| MODEL | CAPACITY | WIDTH | WEIGHT |
| 1445SDH | ½ yd3 | 45" ID | 600 lbs. |
| 1472SDH | ¾ yd3 | 72" ID | 760 lbs. |
| 1484SDH | 1 yd3 | 84" ID | 860 lbs. |
.gif)
Safety Lock prevents accidental tripping
of bucket during transportation..gif)

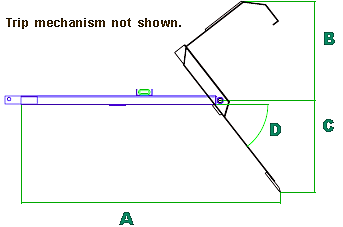

Illustration shows bucket in dump position.
| MODEL | A | B | C | D |
| 1/4 cuyd | 57" | 18" | 19" | 60° |
| 1/2 cuyd | 65" | 25" | 23" | 52° |
| 3/4 cuyd | ||||
| 1 cuyd |
