Auger for Skid-Steer Loader ideal for all drilling needs from dirt to concrete or solid rock.

HEAVY DUTY AUGERS

Ideal for all drilling applications
    from dirt
        to CONCRETE
            and even SOLID ROCK

Rugged planetary drive units feature heavier components than any competitors and will outperform all other drives in their class. Paired with the correct auger, they can handle most any drilling need.

Star Hydraulic Auger Drives are available in Medium and Heavy Duty models for systems operating between 6 and 35 GPM and 2000 to 3000 PSI.
Systems operating over 3000 PSI need a Heavy Duty Pressure Relief Valve, Model 160-HDPRV


  .



Mounting frame

            +

hose kit

      +

        drive
     +

          auger
      = complete assembly


DRIVE SPECIFICATIONS Model
160D-1020
Heavy Duty Recommended		 Model
160D-1530
Heavy Duty Recommended		 Model
160D-2035
Heavy Duty Recommended
Recommended Fluid Flow 10-20 gpm 15-30 gpm 20-35 gpm
Maximum Output Torque 2,000 ft. lbs. 3,000 ft. lbs. 3,500 ft. lbs.
Maximum Pressure-Continuous 3,000 psi 3,000 psi 3,000 psi
Recommended Max. Auger Dia.-Rock 24" 36" 36"
Recommended Max. Auger Dia.-Dirt 30" 36" 36"
Auger Drive Output Shaft Coupler 2" Hex 2" Hex 2" Hex
Drive Weight 185 lbs. 188 lbs. 190 lbs.
OUTPUT SPEED Flow Speed Flow Speed Flow Speed
10 gpm 48 rpm 15 gpm 47 rpm 20 gpm 51 rpm
12 gpm 55 rpm 18 gpm 56 rpm 24 gpm 62 rpm
14 gpm 64 rpm 22 gpm 68 rpm 26 gpm 67 rpm
16 gpm 73 rpm 26 gpm 81 rpm 28 gpm 72 rpm
18 gpm 82 rpm 28 gpm 87 rpm 30 gpm 77 rpm
20 gpm 92 rpm 30 gpm 93 rpm 35 gpm 90 rpm

OUTPUT TORQUE Pressure - PSI Torque - ft. lbs.
2,000 946 1,185 1,339 1,958 2,388
2,500 1,182 1,481 1,675 2,450 2,985

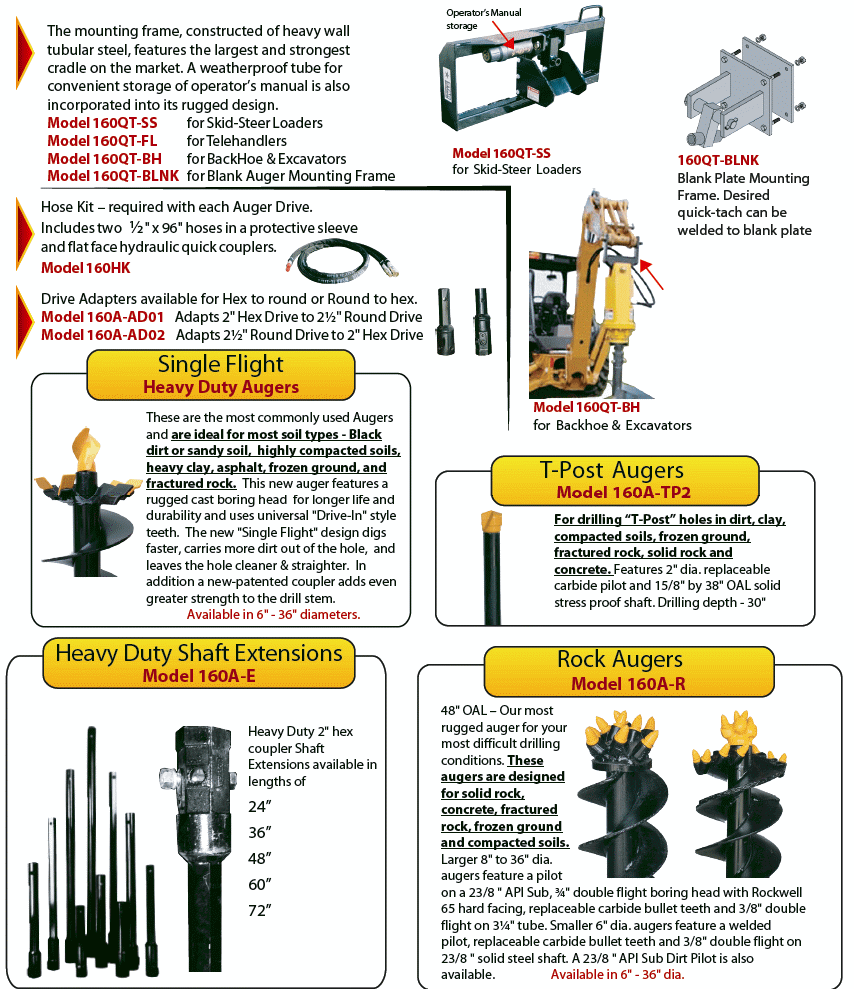

Heavy Duty Augers, Single Flight, T-Post, Rock. Shaft Extensions in lengths 24" up to 72"
New Product

Forklift Auger Pallet

Forklift Auger Pallet stores up to 15 augers in a 4' x 7' space.
  • STORE UP TO 15 AUGERS IN A
    4'x7' SPACE

  • RECOMENDED FOR AUGERS OF
    VARIOUS SIZES UP TO 18" DIA

  • LOADED PALLET CAN BE MOVED
    WITH A FORKLIFT

  • FORK POCKETS ACCEPT FORKS
    UP TO 6" WIDE AND 3" THICK'

  • REQUIRES 48" FORKS OR
    LONGER
View Forklift Auger Pallet Page
Download   Auger Operating manual
