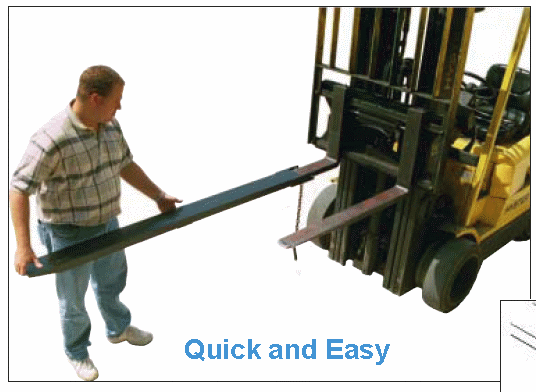

Get More Fork Under Bulky Loads
One Man can install or remove in seconds| Model | Overall Length | Fits | Weight per set |
| 1664 | 72" | 4" x 48" forks | 120 lbs. |
| 1665 | 72" | 5" X 48" forks | 140 lbs. |
| 1666 | 72" | 6" x 48" forks | 160 lbs. |
Note: Can be shipped UPS
Things You Should Know About Fork Extensions
◆ Overall length of fork extension must not exceed 150% of fork length.
◆ Inside width of fork extension must not be more than ½" wider than fork.
◆ Forklift capacity is substantially reduced when center of load is moved out beyond standard 2 ft. load center.
◆ Do not pick up load with tip of fork extensions.
◆ Load must be centered on fork extensions or closer to the backstop.
