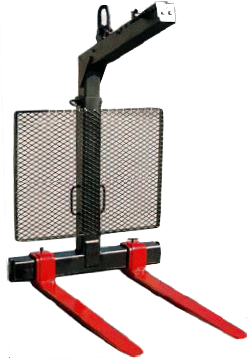

Model 660 Frame shown with
Model 660-01 General Purpose Tines
Model 660-01 General Purpose Tines
Crane Fork FRAME w/backstop
Model 660
Frame only - Select Tines below.
Model 660
Frame only - Select Tines below.
Model 660 Frame shown with Model 660-02 Block Tines
Self Shifting (spring loaded) Pickup Trolley
- ♦ Keeps forks level even when empty
- ♦ Maintains payload center of gravity to keep load level
- ♦ King post adjusts for load heights from 42" to 65"
- ♦ Adjustable stop permits use of 36", 40" & 48" pallets
- ♦ Backstop helps stabilize load - 40" wide
- ♦ Forks spread up 40" wide (out to out)
Tines available in 2 styles
General Purpose Tines Model 660-01
These forks are the best choice for handling a wide variety of materials. The 46" long forks are ideal for standard 48" pallets.
Block Tines Model 660-02
These forks can be used with other materials including brick (just slide the forks together), but are especially adapted for use with cubed or banded block.
Built-in handles on vertical post provide convenient grip for
guiding forks into load.
Pickup Trolley accommodates up to a 5 ton
hook.
All
forks are forged and tapered.
Load is carried
with fork tips slightly tilted up to prevent load from sliding off.
Spring helps return trolley to empty
position when load is released.
A minimum load
of 1100 to 1500 lbs. is required for proper trolley operation.
Caution:
Never unload from a suspended pallet.
| Model (Frame only) |
Description | Weight | |
| 660 | King Post Frame with backstop | 300 lbs. | |
| Model (Tines only) |
Description | Capacity | Weight |
| 660-01 | Gen. Purpose - set of 2 (1½ x 4" x 46") Forged Forks | 6,000 lbs. | 188 lbs. |
| 660-02 | Block - set of 6 (1½ x 2" x 47")Forged Forks | 6,000 lbs. | 258 lbs. |
