Model 140
LIKE HAVING A BUCKET AND MIXER ALL IN ONE.
– Scoop up sand and
gravel in the bucket position
– Rotate to
mixer position, add bag cement, water, & mix
– Discharge concrete thru side chute or
– Tilt mixer down and discharge
out the front

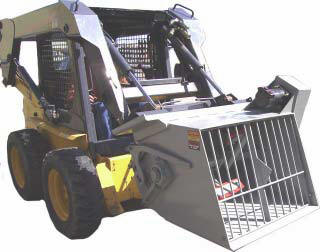

The new Scoop-N-Mix Skid-Steer Concrete Mixer combines the advantages of a loader and a concrete mixer into one piece of equipment. This unique product provides the most efficient and economical way to produce small quantities of thoroughly mixed concrete, transport it to often “difficult to reach” pour sites, and then put it in place.
Scoop-N-Mix is Simple, Fast, and Easy

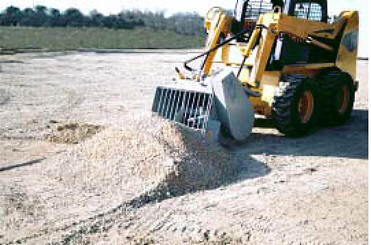

Rotate the mixer into a bucket loading position
and, as with a loader bucket, scoop up the sand and gravel for the mix. The
back-breaking labor of loading by hand is eliminated.
Rotate mixer back to its upright mixing position and break
bags of cement into the mixer using the built-in bag splitter. Water is then added
and within a few short minutes concrete is ready for placement.
Discharge Concrete in one of two ways. Either through a
mechanical lift gate on the side of the mixer and down a chute, or by simply
tilting the mixer down and discharging out the top. The speed and quantity of
discharge can be easily controlled using either method.
THE NEW SCOOP-N-MIX... the fastest and most economical way to produce
small volumes of good quality concrete.
We are all aware that ready-mix companies don’t want to deliver
less than full
truckloads of concrete. Furthermore, even if you can
get small quantities delivered,
you will pay a much higher price and
will
probably be the last on the list for delivery.
With the Scoop-N-Mix
and your skid-steer,you can produce good quality concrete
within minutes, and do it
without the back-breaking labor of
hand loading a mixer.
You will have
concrete when you need it, where you need it, and
at a very economical cost.
The
Scoop-N-Mix features a new improved design. This new design utilizes a revolving paddle mixing action, a method far superior to augers when it comes to producing well-mixed concrete. The revolving paddles are driven by a strong hydraulic motor through a dependable chain and sprocket drive. The hydraulic motor is powered by the auxiliary hydraulics of the skid-steer. The new chain and sprocket drive takes the shock-load off the hydraulic motor when mixing paddles are reversed. This protects the hydraulic motor and greatly extends motor life. Paddle shaft is carried by heavy-duty roller bearings with convenient grease zerks for easy maintenance. Replaceable neoprene pads protect the paddles and are adjustable and reversible for longer life. “Abrasion Resistant Steel” prolongs life of drum.
Model 140
All steel welded construction
Mixing Drum – abrasion resistant steel
Built-in cement bag breaker
Side discharge mechanical lift gate
24" x 12" Side Chute
Reversible neoprene pads for mixer paddles Chain
and sprocket drive
Skid-Steer Requirements
Skid-Steer mounting – universal quick-tach
Recommended skid-steer rated capacity – 1600 lbs. or greater
Auxiliary Hydraulics – 12 to15 gpm (high-flow not required)
Hydraulic Hoses & Quick-Disconnects included
The Scoop-N-Mix is a concrete mixer - not a grout
mixer, however it can mix grout if the mix design
incorporates a proper amount of 3/8" pea gravel.
Mixing capacity – 9 ft3 – 1/3 yd3
Recommended minimum slump – 3"
Maximum coarse aggregate size – 3/4"
Mixing action – reversible revolving paddles
Dimensions and Weight
Mixer Drum width – 36" ID
Overall width – 50"
Overall height – 35"
Overall depth – 30"
Empty weight – 890 lbs.
